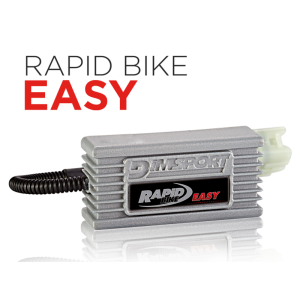

RAPID BIKE EASY 2 ECU WITH WIRING FOR KAWASAKI Z 900 RS 2021-2023

The new Rapid Bike Easy 2 control unit is a management module that acts by interfacing with the signal from the lambda probe equipped with specific "Plug & Play" wiring, ready for assembly on the original system.

The container is in ABS, sealed with epoxy resins to guarantee maximum protection from shocks, vibrations and temperature changes (automotive standard) and waterproof.

Description and Operation

Additional unit equipped with a microprocessor that allows modification of the signal coming from the lambda probe and air temperature.
The calibration of the control unit is carried out with a simple intervention on the trimmer (adjustment screws) which corrects the injection times, considerably increasing the efficiency.

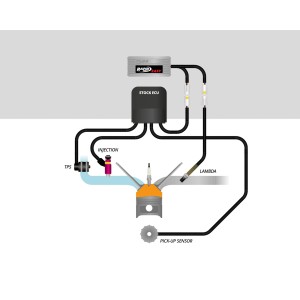

The lambda probe is managed by reading the signal and reproducing it with modified characteristics in order to obtain a correction from the mapping to all the speeds, and improve the response and delivery of the engine.

Plant characteristics

- Wiring system + programmed control unit that does not require additional PC and software
- ABS case and epoxy insulation system with characteristics of resistance to shocks, vibrations and thermal excursions (automotive standard) and waterproof
- 12V dc power supply

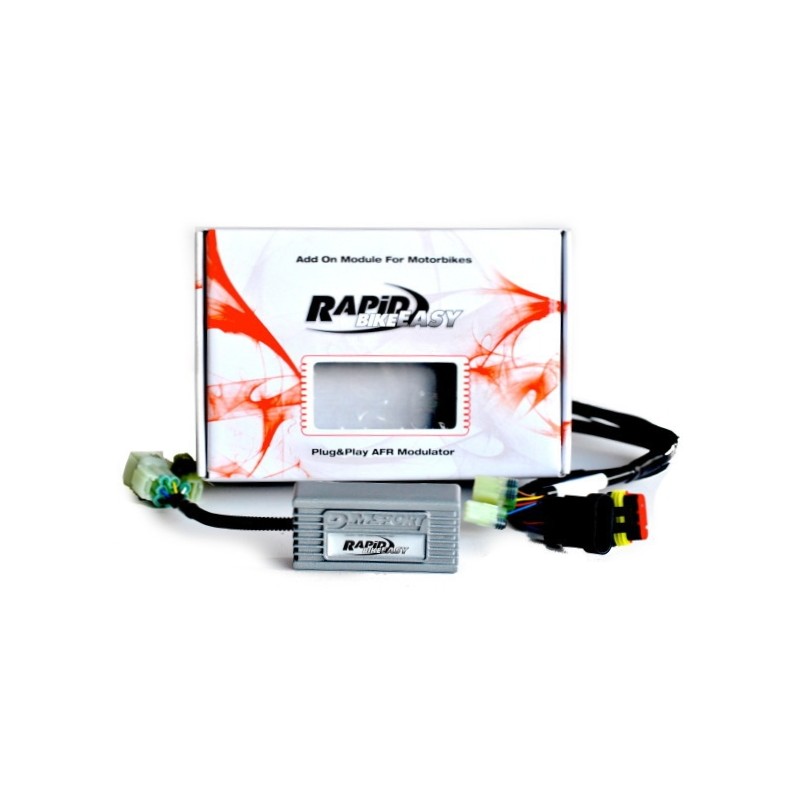

Inside the package there is the specific table for setting the trimmers.
