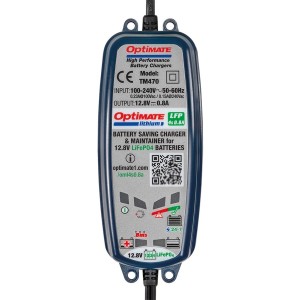

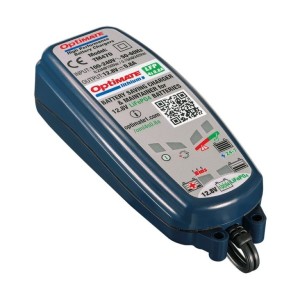

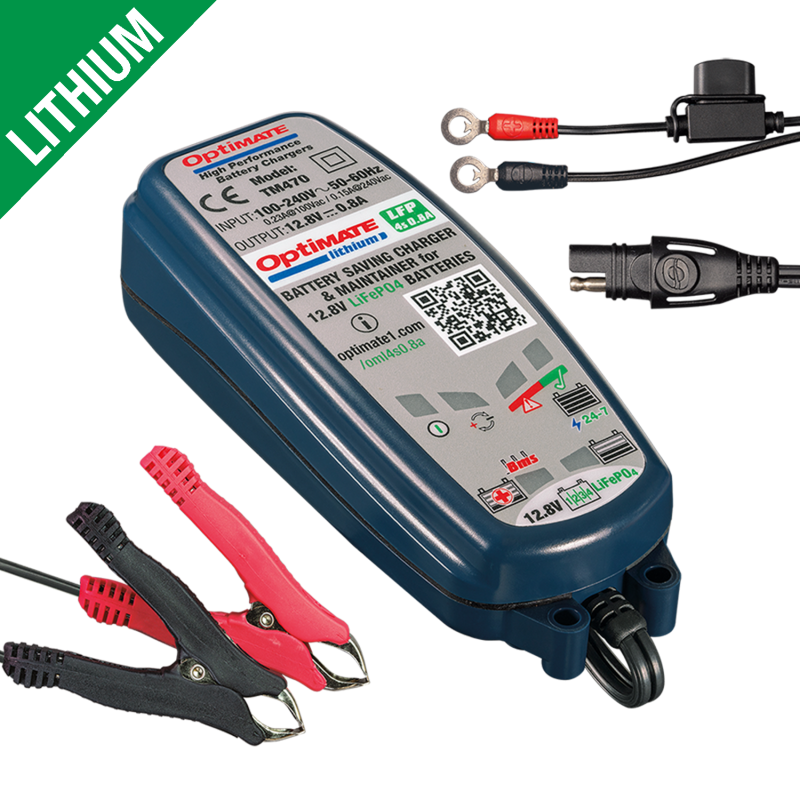

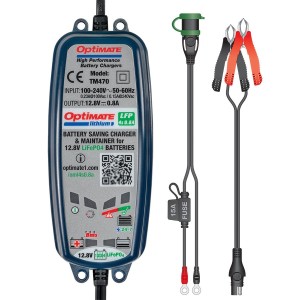

Battery charger with function of charge maintainer, optimizer and tester with automatic diagnosis, multi-phase microprocessor operation, for lithium iron/phosphate batteries (LiFePO4/LFP) 12V from 2 to 30 Ah.
FEATURES:
First verification test with check of battery status and ambient temperature.
Check of short-circuited and/or defective cells.
Recovery in low voltage mode with "SafeT" protection system
and charge control.
Switch to main charge mode with current regulated by the microprocessor, with a program with the ideal load curves for LiFePO4 batteries.
Absorption and equalization phase of the cells with current supply
pulse voltage controlled between 14.0 and 14.3 V
Charge verification and maintenance test without power supply.
2 possible test results.
Charging time limit of 24 hours, unlimited holding time.
Alternation of test and maintenance cycles of 30 minutes each for each hour for 12 hours.
Airtight IP54 container, with integrated wall fixing plates.
Dimensions 167 x 65 x 46 mm. Charging current 0.8A. Power supply 220/240V.
Total electronic protection against polarity reversal
Not usable for Lead, Nickel, NiCd, NC, NiMH, Lithium-Ion, Lithium-Polymer batteries, non-rechargeable and dry cells.
