High performance monoshock, adjustable in compression, rebound, spring preload and wheelbase. Pressurized with nitrogen, with separate compensation chamber.

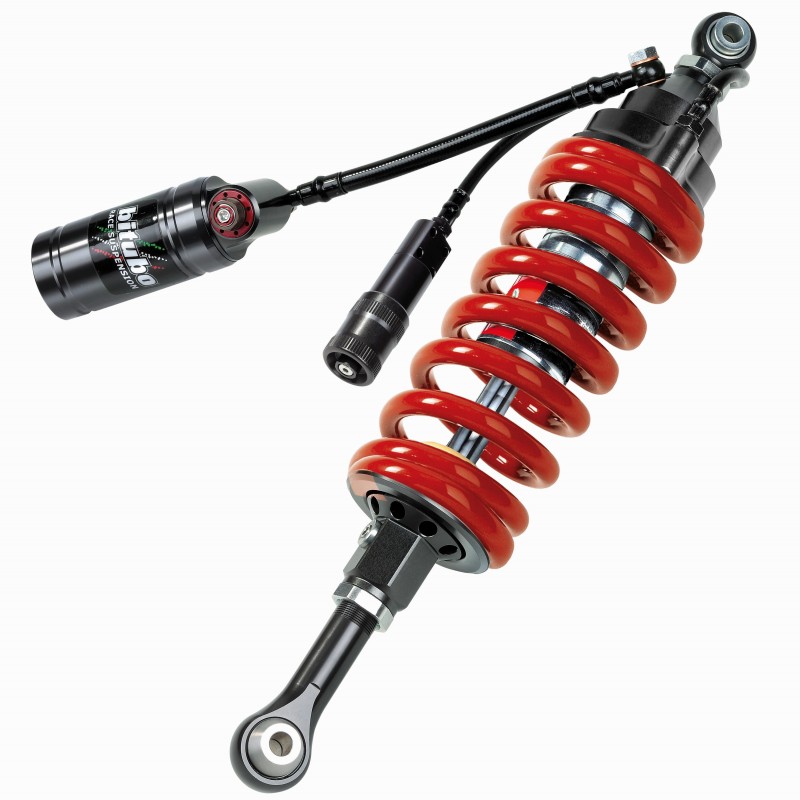

SHOCK ABSORBER BITUBO CLU31 TRIUMPH TIGER 1050 2007-2015
T0020CLU31
8033914145200
Price :
€1,038.42
€1,282.00
Shipping within 7-10 business days
Features
High performance monoshock, adjustable in compression, rebound, spring preload and wheelbase. Pressurized with nitrogen, with separate compensation chamber.
No queries yet, leave the first!
SHOCK ABSORBER BITUBO CLU31 TRIUMPH TIGER 1050 2007-2015
Reference :
T0020CLU31
Nitrogen shock absorber with floating piston for oil/gas separation in the compensation chamber. Piston rod diameter 16 mm with antifriction treatment and low friction index guide bushings. Aeronautical aluminum alloy upper and lower attachment head made with CNC precision machines.
The spring preload adjustment is entrusted to the hydraulic preload which can be operated either by hand or with a common 14 mm hex key.
Settings:
Low speed compression: 24 clicks
High speed compression: 20 clicks
Extension: 24 clicks
Spring preload: hydraulic 12 mm, 24 clicks
Wheelbase: 8 mm
The spring preload adjustment is entrusted to the hydraulic preload which can be operated either by hand or with a common 14 mm hex key.
Settings:
Low speed compression: 24 clicks
High speed compression: 20 clicks
Extension: 24 clicks
Spring preload: hydraulic 12 mm, 24 clicks
Wheelbase: 8 mm
NOTE: Upon request when ordering, it is possible to provide certification for use in the territory of Switzerland.
